    EN-K LiDAR for Mining & Logistics Management

    Ask Lasest Price
    Brand Name : Enviko
    Payment Terms : T/T
    • Product Details
    • Company Profile

    EN-K LiDAR for Mining & Logistics Management


    EN-K LiDAR for Mining & Logistics Management


    The EN-K series lidar is a measurement-type single-line lidar that supports indoor and outdoor applications. It has super measurement capabilities. For targets with 10% reflectivity, its effective measurement distance can be up to 100 meters. The maximum scanning angle range is 270°, the scanning frequency is higher Max100Hz, and the angle resolution is smaller Min0.0625°. The radar adopts industrial-grade protection design, which can meet the strict reliability requirements and high performance requirements of the mining industry - mining truck obstacle avoidance, positioning, loading monitoring, automatic palletizing, material level height, material level volume, three-dimensional point cloud and other applications. occasion.


    Parameter model

    EN-K30HFAT

    EN-K40HET

    EN-K60CMT

    EN-K100CMT

    Laser characteristics

    905nm, Class 1 laser product, eye safe (IEC 60825-1)

    Laser light source

    905nm

    905nm

    905nm

    905nm

    Measuring frequency

    144KHz

    72KHz

    36KHz

    36KHz

    Measuring distance

    30m@10%,45m@90%

    40m@10%,90m@90%

    60m@10%,100m@90%

    100m@10%,250m@90%

    Scanning frequency

    25/50Hz

    12.5/25/50/100Hz

    12.5/25/50Hz

    12.5/25/50Hz

    Detection angle

    270°

    270°

    270°

    270°

    Angular resolution

    0.0625/0.125

    0.0625/0.125/0.25/0.5

    0.125/0.25/0.5

    0.125/0.25/0.5

    Measuring accuracy

    ±30mm

    ±30mm

    ±40mm

    ±50mm

    Machine power consumption

    Typical ≤15W; heating ≤55W

    Typical ≤20W; heating ≤60W

    Typical ≤15W; heating ≤55W

    Typical s15W; heating ≤55W

    Working voltage

    Voltage range: DC9~36V, recommended voltage: DC24V/DC12V

    Starting current

    2A@DC24V radar side; 2.5A@DC12V radar side

    Interface type

    Power supply: 6-core aviation socket <work, heating>; communication: 7-core aviation socket <network, RS232/RS485>; 10: 9-core aviation socket <remote signaling, remote control, synchronization>

    Number of interfaces

    Power supply: 1 working channel/1 heating channel; Network: 1 channel; Remote signaling (X): 2 channels (K40HE: 0 channels), remote control YK): 2 channels (K40HE: 3 channels); Synchronization: 1 channel, RS232/ RS485: 1 channel optional)

    Environmental parameters

    Wide temperature: -55°C~+80°C;

    ·Operating temperature: -55°C~+70C; Working humidity: 0%~95%

    Overall dimensions

    Rear outlet: 136mmx129mmx205.5mm; Bottom outlet: 125mmx129mmx217mm

    Light resistance level

    80000lux

    Protection level

    IP67/68

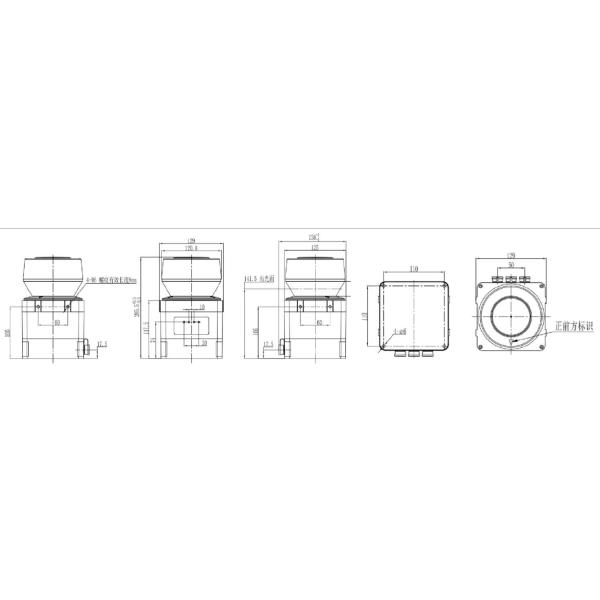

    Product dimensions

    EN-K LiDAR for Mining & Logistics Management
